NovaStar Program Reference / System / novastar5

Overview

The novastar program controls NovaStar system processes and sets program state. On system start, novastar5 start is run if the database configuration table has a record with name='system_up' and a value='true'.

The program can manage a single program or all NovaStar5 processes.

See the table below for command line parameters. The major operations are as follows:

On start (novastar5 all start, which is the default):

On stop (novastar5 all stop):

On restart (novastar5 all restart):

  • novastar5 all stop
  • novastar5 all start

On status (novastar all status):

On state (novastar all state):

Command Line Usage

The command must be run as the root user except for actions status, statusword, or uptime.

The command line syntax is:

novastar5 subsystem action [portname] [options...]

novastar5 subsystem state [portname] [options...]

Optional values are shown in square brackets. Subsystems for commands are as follows.

novastar5 Subsystems for Command Line Parameters

Subsystem     Description Default
all Control all data collection processes. This is the default subsystem.
dbrep Control database replication processes.
alert [portname] Control ALERT data collection processes. 'portname' is the optional port name to control. For example: alert_port1, alert_port2. Use portname from configuration data.
50386 [portname] Control 50386 data collection processes. 'portname' is the optional port name to control. For example: 50386_port1, 50386_port2 Use portname from configuration data.
autointer Control automatic interrogation processes.
mapdisplay Control map display processes.
alerttalk3 Control AlertTalk3 processes.
nsdataloader-datafiler Control filing data from the data_load table.
netcat Control netcat processes.
nsdataloader-filereader [program number] Control adding data to the data_load table. 'program number' is the optional program configuration to control. For example: data_loader_file_reader1, data_loader_file_reader2. TODO
siren Control novastar5 siren processes.
systemcommand Control system command processes.
system Control novastar5 system start.

Actions for command line parameters are as follows.

novastar5 Actions for Command Line Parameters

Action                                 Description
force-start Force starting a NovaStar service (enable and start).
force-restart Force restarting a NovaStar service (enable and restart).
start Start a NovaStar service.
stop Stop a NovaStar service.
restart Restart a NovaStar service.
status Print the status for NovaStar service.
statusword Currently partially enabled. Custom action to print the service status as one word:
  • disabled - service is disabled
  • running - service is enabled and running
  • stopped - service is not running
  • unknown - service status is unknown
uptime Currently partially enabled. Custom action to print the service uptime:
  • number of seconds as integer - when statusword is running
  • 0 - when statusword is stopped or immediately after service is started
  • -1 - when statusword is unknown

States for command line parameters are as follows.

novastar5 States for Command Line Parameters

Subsystem Description
disable Disable a subsystem.
false Disable a subsystem.
enable Enable a subsystem.
true Enable a subsystem.
master
backup
slave
single
failover

Command line parameters are:

novastar5 Command Line Parameters

Parameter Description Default
--debug Turn on debug messages.
-h
-help
--help		 Display help.
--net Execute on all replication nodes. Only current node is changed.
--quiet Do not prompt for root password, exit with status 1, used with automated testing. Prompt for root password if necessary.
-version
--version		 Print program version.

Examples

The following is an example of a typical system start:

$ sudo novastar5 start
[ ok ] Starting NovaStar5 system start: /usr/bin/novastar5 start.
[ ok ] Starting NovaStar5 System command on dleadernb3: /usr/bin/nssystemcommand :.
[ ok ] Starting NovaStar5 Network serial port pipe on dleadernb3: /usr/bin/nsnetcat /dev/siren1 -fnsatifilter -l -nnovastar5 -p8501:.
[ ok ] Starting NovaStar5 Network serial port pipe on dleadernb3: /usr/bin/nsnetcat /dev/siren1 -fnsatifilter -nnovastar5 -p8502:.
[ ok ] Starting NovaStar5 ALERT data collection on dleadernb3: /usr/bin/nsrecdata /dev/rtdd1 :.
[ ok ] Starting NovaStar5 ALERT data collection on dleadernb3: /usr/bin/nsrecdata 192.168.1.91:2101 -a2 -S1 -r1minute:.
[ ok ] Starting NovaStar5 ALERT data collection on dleadernb3: /usr/bin/nsrecdata 192.168.1.90:4200 -Galert2 -a1 -S4,2 -r5minutes:.
[ ok ] Starting NovaStar5 Automatic interrogation on dleadernb3: /usr/bin/nsautointer :.
[ ok ] Starting NovaStar5 Map display on dleadernb3: /usr/bin/nsmapdisplay -n:8502 -U1,2:.
[ ok ] Starting NovaStar5 AlertTalk3 on dleadernb3: /usr/bin/nsalerttalk3 -n:8503 -U1,2:.
[ ok ] Starting NovaStar5 siren on dleadernb3: /usr/bin/nssiren /dev/siren1 hormann:.

Scheduling

The script is not run on a schedule. However, once programs are started, nshealthcheck may restart some processes.

NovaStar Administrator Interface

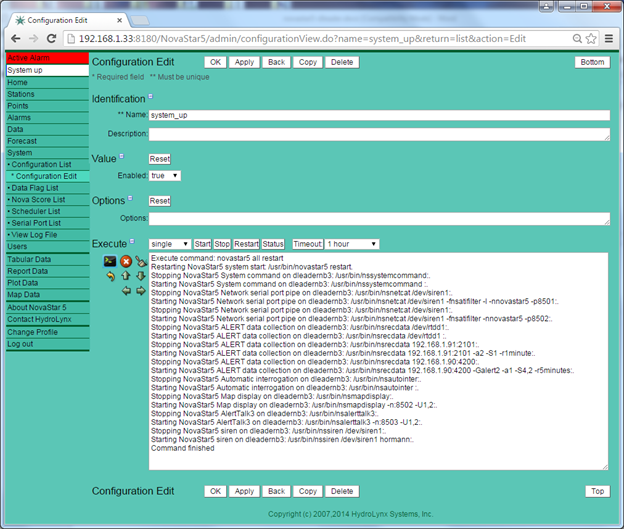

On the Configuration List menu, click Configuration Edit on system_up. At the page bottom in the Execute section, the novastar5 command is executed with the network state and action selected. For example, the following illustrates restarting the system.

NovaStar restart

novastar5 restart (see also the full-size image)

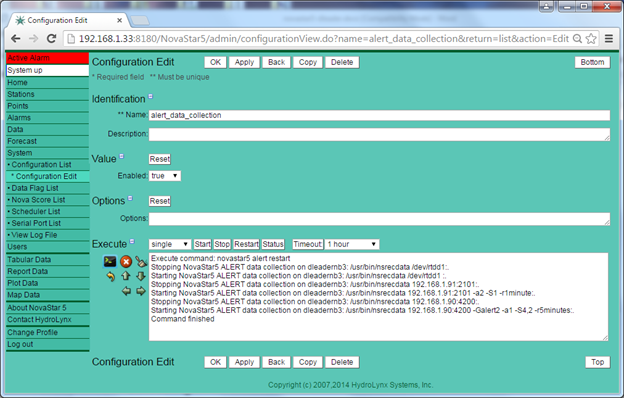

For individual data collection such as alert_data_collection, the Execute section executes the novastar5 program with the network state, the alert control type, and the action selected, as shown below:

alert_data_collection

novastar5 alert restart (see also the full-size image)

Troubleshooting

If database_replication is not present in the configuration table, starting programs may not work as expected.

The novastar5 program log file can be found in the following location: /var/log/novastar5/novastar5.log.
